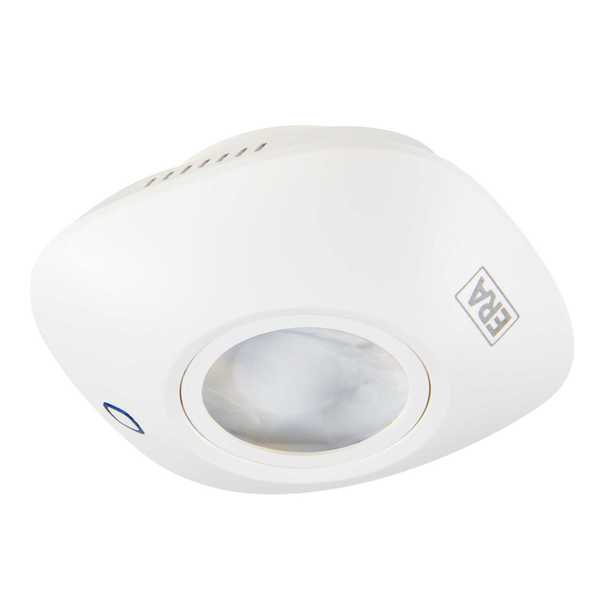

Ceiling PIR Sensor

  • Compatible with all ERA wireless alarm systems
  • Ideal for PIR detection mounted onto the ceiling of a room
  • The sensor has a 360 degree detection range and is ideal for use in open space environments
  • Incorporating automatic temperature compensation and antidraft technology, the sensor minimises the risk of false alarms/triggers
  • The sensor detects tiny variations in the environment caused by human body movements
  • When triggered, the sensor sends a signal to your control panel, alerting users of the activation event
  • Wireless sensor is battery operated and has a compact design to sit discreetly in any environment
  • The LED indicator can be turned off to further disguise the sensor
  • Also has a walk test function allowing the user to check the sensor periodically
  • Box contains the sensor, 2 x batteries, mounting plate and instruction guide
Cefco eraceilingpir20240329 2755 bz8qt
  • Part Code: ERACEILINGPIR
  • Stock Code: 2467-4596
Specification
Batteries Included Yes
Battery Size AA
Colour White
Depth 36.8mm
Detection Degree 360°
Detection Range 6m
Dimensions (H)90 mm x (W)90 mm x (D)36.8 mm
Frequency 433MHz
Guarantee 2 Years
Height 90mm
Humidity Range Up to 80% RH (Non Condensing)
Logistics Partner NONE
Material ABS Plastic
Mounting Ceiling
Number Of Batteries 2
Obsolete Iso 2022-06-17
Operating Temperature Range -10 - 50°C
Packaging Types Box
Sensor PIR
Similar Stock No
Suitable For ERA Wireless Alarm Systems
Test Facility Yes
Unspsc 46171608
Unspsc V13 46171619
Unspsc V18 46171619
Unspsc V22 46171619
Weight 0.884kg
Width 90mm
Wireless Range 80m
