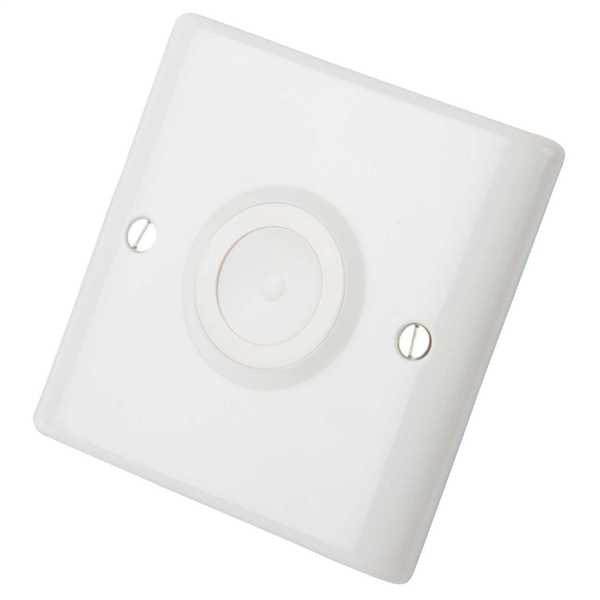

3 Wire Electronic Push Button Time Delay Switch

  • Easy to install and operate
  • 10A rated regardless of load type
  • Adjustable from 2 mins to 1 hour
  • Neutral required
  • Suitable for use with 25mm BS back box
  • Please note: LEVPFCC capacitor will often be required when switching certain types of loads
Cefco lev3wpb20240328 2755 1fj0gxe
  • Part Code: LEV3WPB
  • Stock Code: 1865-9899
Specification
Available Options Variety of Different Operation Types Available such as Pushbutton, Touch and PIR
Outdoor Options Available
Cancellation Function Yes
Colour White
Compliance CE
Current Rating 10A
Depth 8mm
Dimensions (H)85 mm x (W)85 mm x (D)8 mm
Finish Glossy
Frequency 50 Hz
Guarantee 6 Years
Height 85mm
Logistics Partner NONE
Material ABS
Mounting Wall
Number Of Wire Connections 3
Packaging Types Box
Re Trigger Function Yes
Similar Stock No
Standards BS EN 60669-2-3:2006 (Ed 4), BS EN 60669-2-1 2002 (Ed 3), BS EN 60669-1 1998 + A1:1999
Suitable For Resistive, Incandescent, Fluorescent, Compact Fluorescent and LED Loads
Timer Range 2 - 60
Type Pushbutton
Unspsc 39122208
Unspsc V13 39122208
Unspsc V18 39122208
Unspsc V22 39122208
Voltage Rating 230V
Weight 0.145kg
Width 85mm
